Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | OSMANUV |
| Sertifika: | ISO9001 |
| Model numarası: | OSM-IR-200 |
| Belge: | 5 Meters IR Drying Machine.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 set |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | ahşap paket |
| Teslim süresi: | 10 GÜN |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Müzakere |
|
Detay Bilgi |
|||
| Güvenlik özellikleri: | Aşırı ısınmaya karşı koruma | Türü: | kurutma makinesi |
|---|---|---|---|
| Taşıma bandı: | Teflon ağlı kemer | Voltaj: | 220v |
| Güç: | 2000W | Görev: | Plastik bardak hızlı kurutma makinesi |
| Zamanlayıcı Ayarı: | 1-60 dakika | Garanti: | 1 yıl |
| Isıtma yöntemi: | Kızılötesi | Renk: | Bilgisayar Beyaz |
| Etkili Kuru Genişlik: | 200 mm | Işık: | Kızılötesi IR tüpü |
| Durum: | Yeni | ||
Ürün Açıklaması

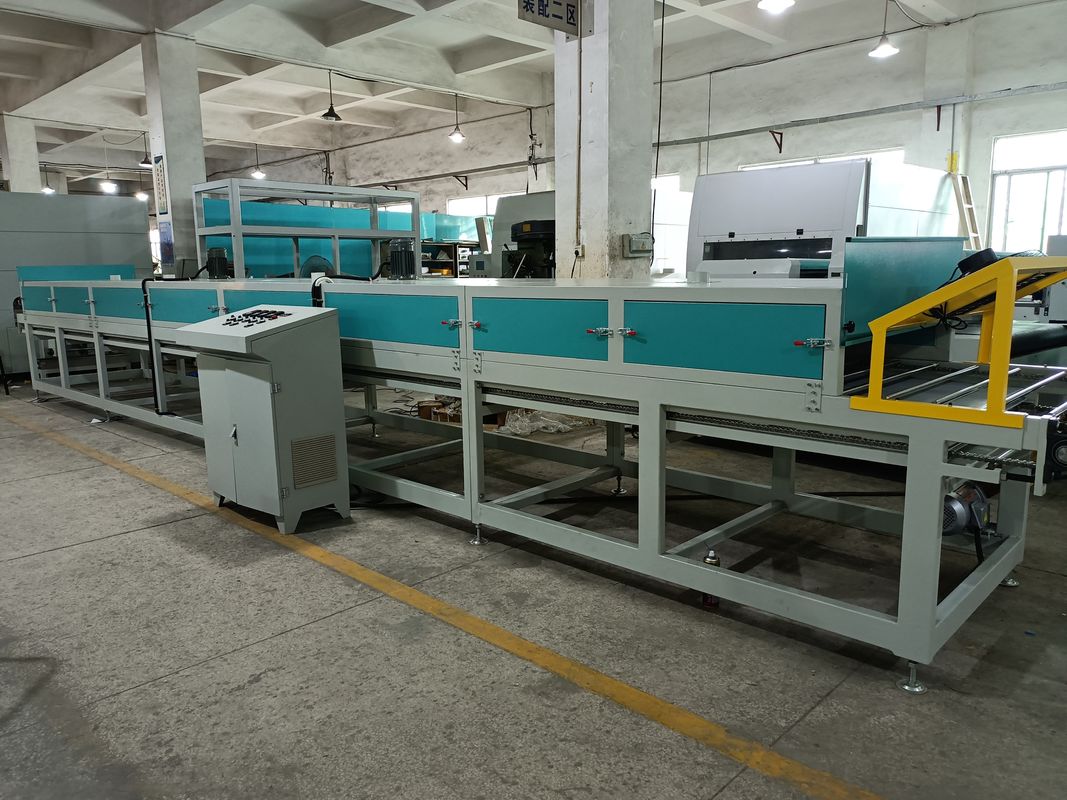

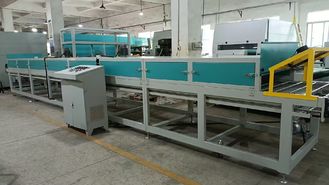

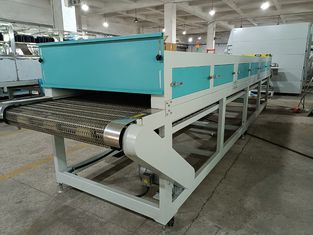

Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Product Description
The 5 Meters IR Drying Machine (Model: OSM-IR-200) is a high-efficiency infrared drying solution designed for continuous industrial production. With a 5-meter drying tunnel and 750W extended shaft motor, it ensures uniform temperature distribution and fast curing for coatings, inks, or adhesives. The Kevlar conveyor belt (imported from the USA) and Taiwan Delta frequency converter enable smooth speed adjustment (1-5 m/min), ideal for high-throughput factories.
Technical Parameters
| Parameter | Details |
|---|---|
| Dimensions | 5000mm (L) × 1000mm (W) × 1280mm (H) |
| Heating Source | US-made infrared quartz lamps, SUS 304 stainless steel inner wall |
| Temperature | Room temperature to 100°C (adjustable via BKC controller) |
| Belt Speed | 1-5 m/min (Delta frequency converter) |
| Power | 750W motor + Taiwan TWT gear reducer |
| Safety | Overload protection, emergency stop, CE-compliant electrical components |
Application
✔ Printing Industry: Drying UV inks on packaging materials.
✔ Electronics: Curing adhesives on PCB boards.
✔ Textiles: Heat-setting for synthetic fabrics.
Customization
-
Adjustable belt width (standard: 200mm).
-
Optional additional heating zones for higher temperatures.
Key Features
✅ Energy-saving: Infrared heating reduces power consumption by 30% vs. traditional ovens.
✅ Precision Control: Delta inverter ensures stable speed and temperature.
Support and Services
-
24/7 technical support via 400-666-2388.
-
On-site installation available in China.
Packing and Shipping
-
Wooden crate packaging (IP65 standard).
-
FOB Dongguan, lead time: 15 days.
FAQ
Q: Can it handle flammable materials?
A: Yes, with optional nitrogen atmosphere customization.
