High-Speed Film Laminating Machine with Automatic Cutting for Decorative Wood Grain Applications
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | OSMANUV |
| Sertifika: | ISO9001 |
| Model numarası: | OSM-FM-1320 |
| Belge: | film Lamintaing.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 set |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Ahşap ambalajı |
| Teslim süresi: | 40 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Müzakere |
|
Detay Bilgi |
|||
| Makine Çalışma Yönü: | Soldan sağa | Makine yüksekliği: | 850 ± 30 mm (yerden konveyör bandına) |
|---|---|---|---|
| Genel Boyutlar: | 6300mm × 1550mm × 1200mm | Minimum taşıma uzunluğu: | 300mm |
| Ürün adı: | Yüksek Verimlilikli Film Laminasyon Makinesi | Durum: | Yeni |
| Garanti: | 1 yıl | ||
| Vurgulamak: | automatic cutting film laminating machine,high-speed wood grain laminator,decorative film laminating machine |
||
Ürün Açıklaması

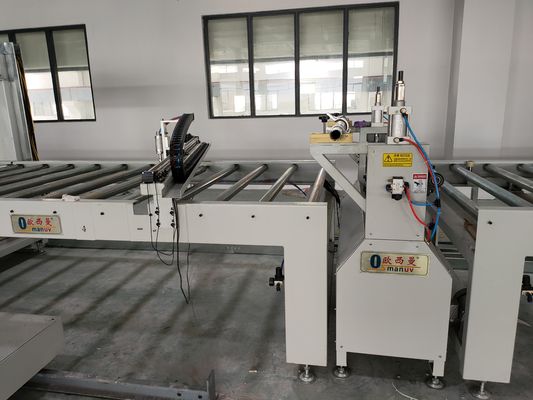

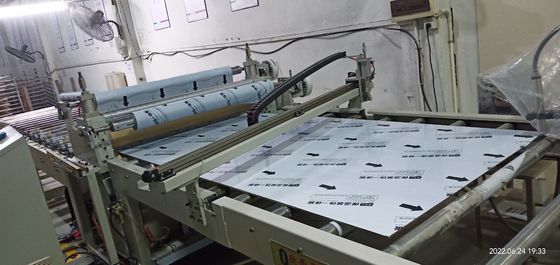

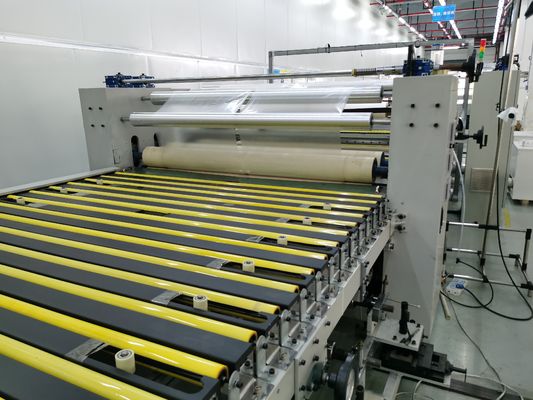

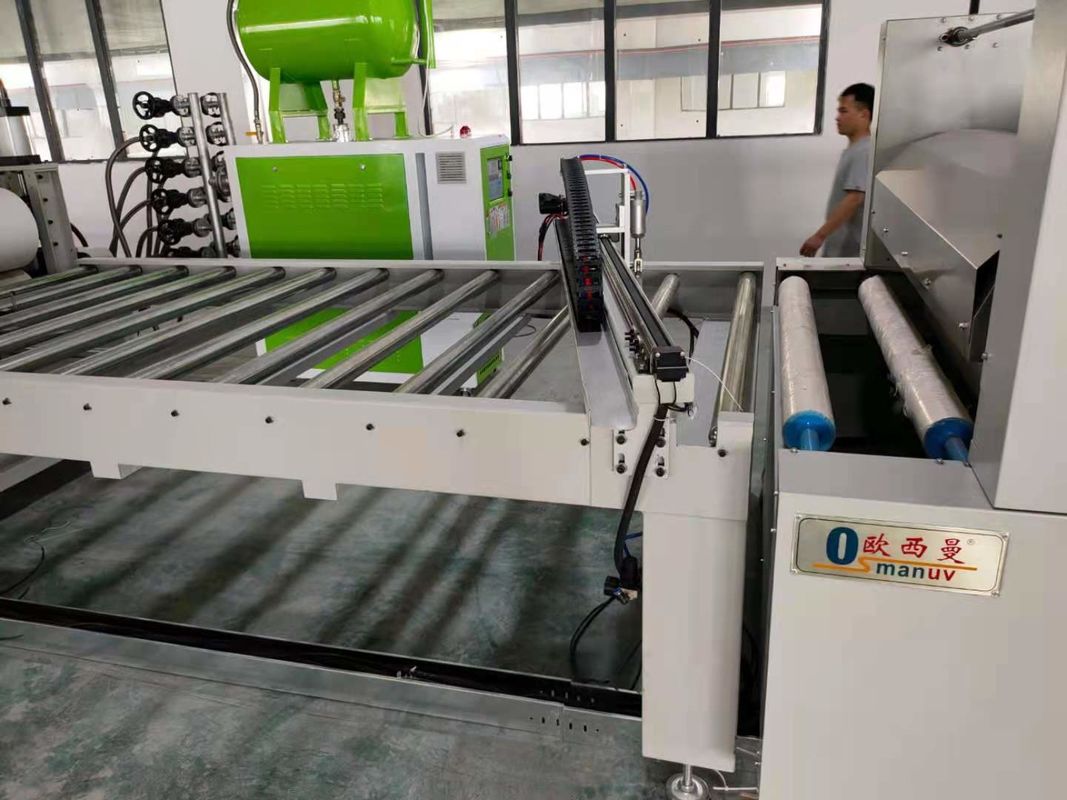

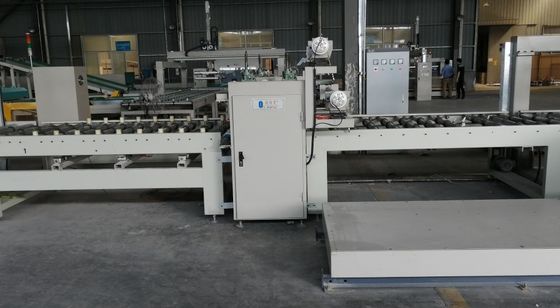

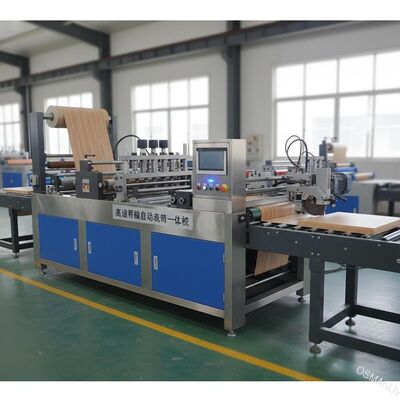

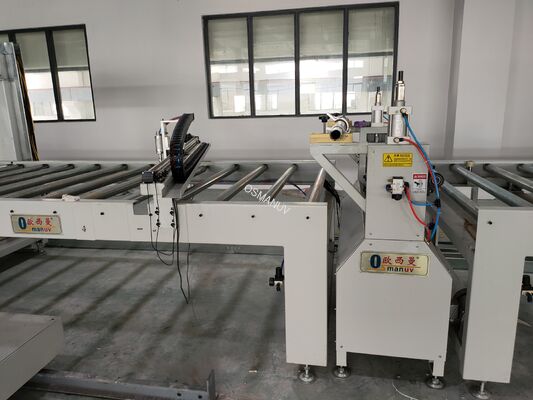

High-Speed Film Laminating Machine with Automatic Cutting for Decorative Wood Grain Applications
Product Description:
This high-speed film laminating machine with automatic cutting function is specialized for applying wood grain films to metal composite panels. It delivers aesthetic appeal and durability for architectural applications.
Technical Parameters:
| Parameter Category | Specification |
|---|---|
| Effective Working Width | 0-1320mm |
| Conveyable Material Thickness | 3-80mm |
| Conveying Speed | 1-20m/min |
| Drive Roller Diameter | Ø150 mm |
| Auxiliary Drive Roller Diameter | Ø150 mm |
| Drive Roller Length | 1320mm |
| Auxiliary Drive Roller Length | 1320mm |
|
Machine Length |
500 mm |
Application:
- Metal composite panels for architectural cladding
- High-end appliance surfaces
- Luxury furniture and fixtures
Customization:
- Metal Types: Customizable with options for aluminum, stainless steel.
- Film Patterns: Wood grain, metallic, color films.
- Automation: Optional robotic integration.
Feature:
- Precision Cutting: Automatic cutting with CNC system.
- Bubble-Free Laminating: Vacuum technology ensures perfect adhesion.
- Smart Control: Real-time monitoring with data analytics.
Support and Services:
- On-site installation and calibration.
- 24-month warranty on cutting systems.
Packing and Shipping:
- Climate-controlled packaging with GPS tracking.
- Worldwide logistics support.
FAQ:
Q: Can the machine handle large-sized panels?
A: Yes, the machine can be customized with extensions for panels up to 3000 mm.
