High-Speed Wood Panel Flow Coating Machine for Factory Flooring: Durable Finish & Mass Production Coating Line
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | OSMANUV |
| Sertifika: | ISO9001 |
| Model numarası: | OSM-LT-1320 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 set |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Ahşap ambalajı |
| Teslim süresi: | 40 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Müzakere |
|
Detay Bilgi |
|||
| Güç kaynağı: | 380V/50Hz, üç fazlı beş telli sistem | taşıma yönü: | Soldan sağa. |
|---|---|---|---|
| Durum: | Yeni | Garanti: | 1 yıl |
| Ürün adı: | Perde Kaplama Ürün Hattı | Üretim Hattı Hızı: | 0-10m/dak |
| Şanzıman genişliğindedir: | 1320mm | ||
| Vurgulamak: | wood panel flow coating machine,high-speed curtain coating machine,factory flooring coating line |
||
Ürün Açıklaması

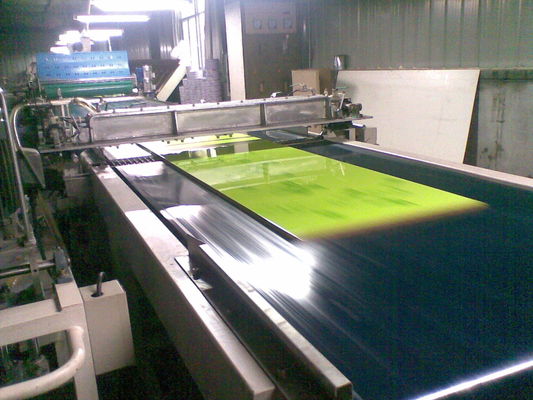

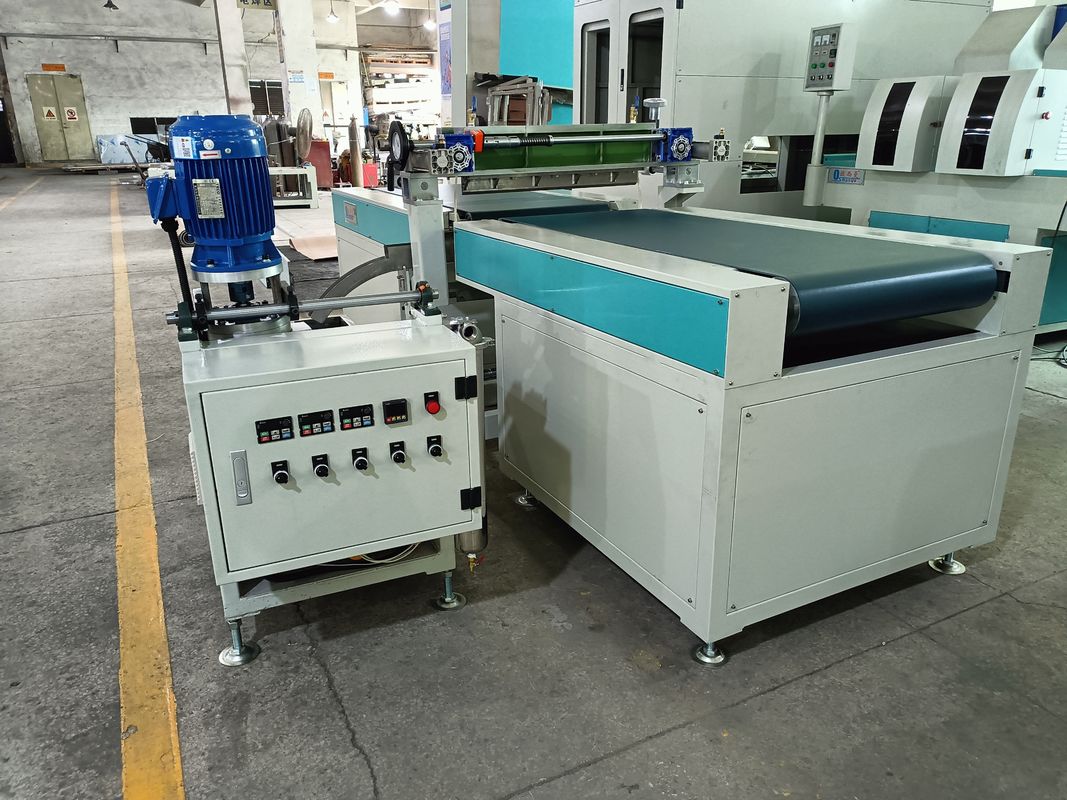

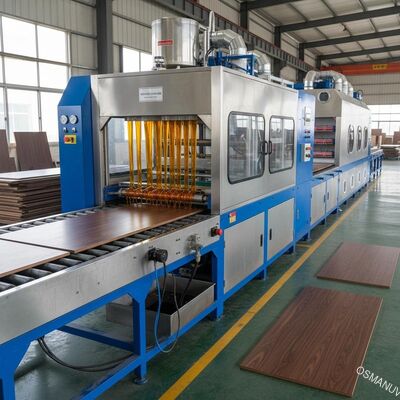

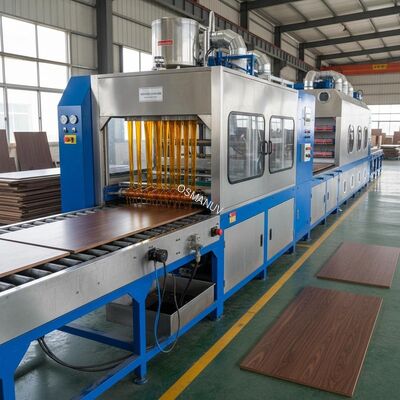

High-Speed Wood Panel Flow Coating Machine for Factory Flooring: Durable Finish & Mass Production Coating Line
Product Description:
Our high-speed automated flow coating line is engineered for furniture panel, door skin, and laminate flooring manufacturers seeking unparalleled throughput. This system delivers a consistent, high-gloss, or satin finish with exceptional durability, ideal for high-volume production environments. The entire process, from feeding to curing, is seamlessly integrated for maximum efficiency and minimal downtime.
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Dimensions | 6000mm L × 2200mm W × 1400mm H |
| Belt Height from Ground | 850-900mm adjustable |
| Total Weight | 2000 kg |
| Coating Width | 1320 mm |
| Processing Thickness | 3-80 mm |
| Minimum Processing Length | 300 mm |
| Conveyor Power | 2.2 kW |
| Oil Pump Power | 2.2 kW |
| Paint Consumption | 60-200 g/m² |

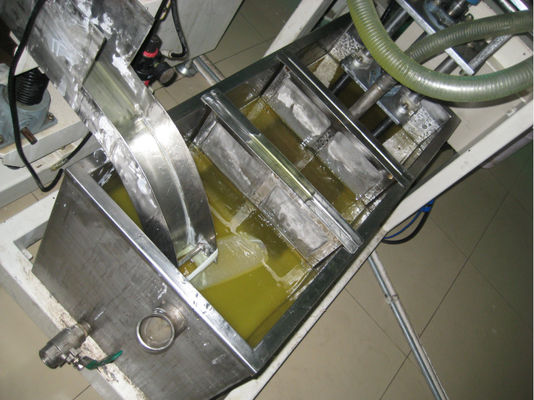

| Paint Tank Capacity | 250 kg |
Application:
Mass production of furniture panels, kitchen cabinets, laminate flooring, door skins, and wall panels.
Feature:
- Ultra-High Speed Coating for maximum output.

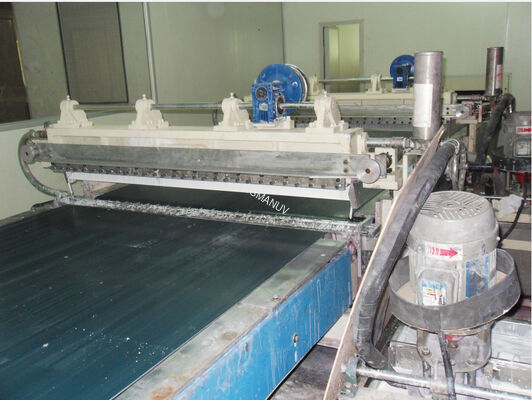

- Precision Coating Head for uniform film thickness.

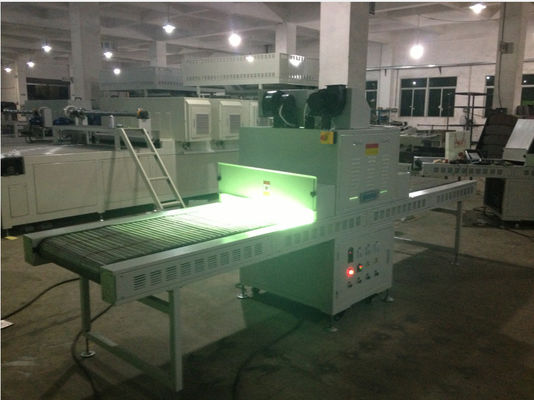

- Energy-Efficient UV Curing System.
- Fully Automated Conveyor System with automated feeding and stacking.
Customization:
We offer extensive customization options including line length, conveyor width, coating tank capacity, and specific curing solutions to match your factory layout and product requirements perfectly.
Support and Services:
Comprehensive package including installation supervision, operator training, remote troubleshooting, and an extensive inventory of spare parts for prompt delivery.
Packing and Shipping:
All modules are crated in heavy-duty wooden frames with waterproof wrapping for sea freight. Professional export packing ensures safe arrival.
FAQ:
- Q: Can this line handle different panel sizes without lengthy changeovers?
A: Yes, the conveyor and coating system are designed for quick width adjustments to accommodate various panel sizes, minimizing downtime.
