Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | Osmanuv |
| Sertifika: | CE |
| Model numarası: | OSM-XT-1024T |
| Belge: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 set |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Ahşap kutu |
| Teslim süresi: | 45 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Müzakere |
|
Detay Bilgi |
|||
| Kaplama Güvenliği: | Yüksek güvenlik | Kullanım: | Düz panel |
|---|---|---|---|
| Fırça merdanesi: | 200 mm | Uv Lamba Gücü: | 5kw |
| Lamba tipi: | UV Lambası | Kaplama Verimliliği: | Yüksek verimlilik |
| Hız iletme hızı: | 25 - 80 m/dak | Makine Testi Raporu: | Tedarik edilen |
| Vurgulamak: | industrial rotary spray coating line,waterproof pulp molded packaging machine,heavy-duty pulp molding coating machine |
||
Ürün Açıklaması
Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Keywords: industrial pulp coating machine, waterproof rotary spray line, customizable coating equipment

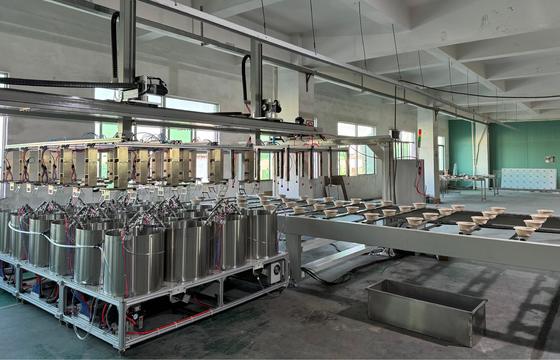

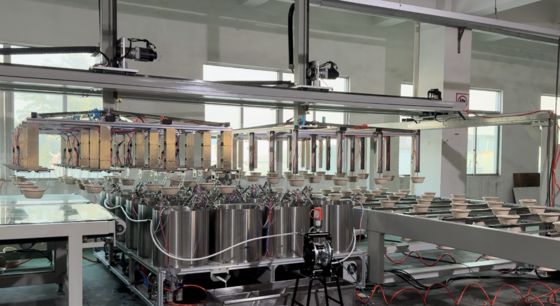

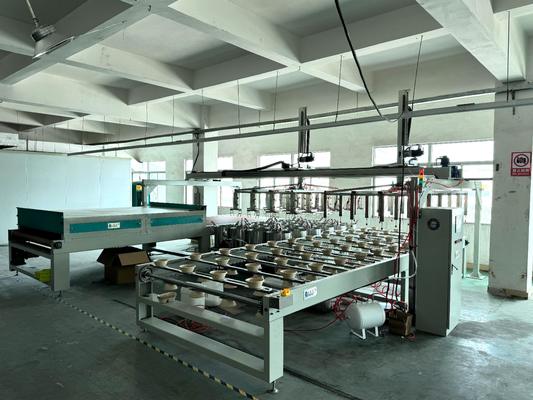

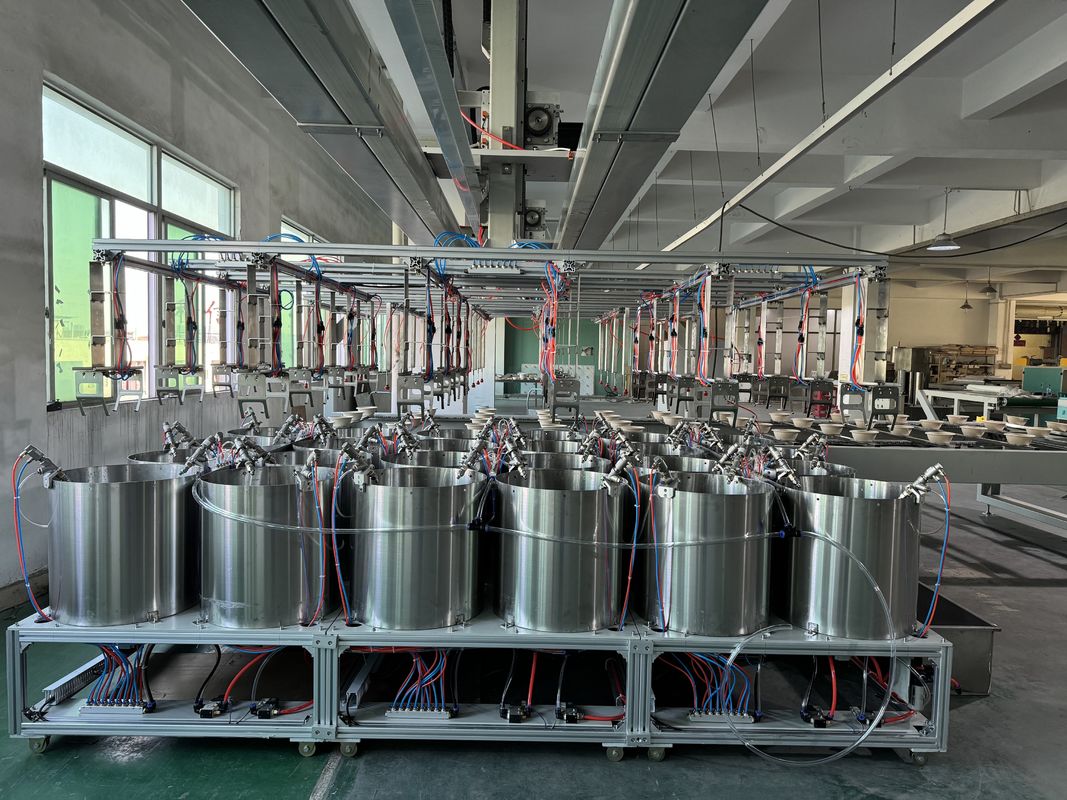

Composition of Production Line:
Robotic loading arm, high-volume rotary spray stations, IR pre-drying tunnel, final curing oven, manual unloading conveyor.
Product Description:
Designed for industrial pulp molded packaging (e.g., electronic cushioning, automotive parts), this line applies robust internal waterproof coatings with superior adhesion and resistance.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Capacity | 500-2000 pcs/hour (customizable) |
| Coating Thickness | 0.05-0.3 mm (adjustable) |
| Air Pressure | 0.6-0.8 MPa |
| Power Consumption | 25-60 kW (depending on configuration) |
| Control System | Mitsubishi PLC + 10" HMI |
| Coating Type | Water-based PU, acrylic (customizable) |
| Footprint | ~15m x 5m x 3m (customizable) |
Application:

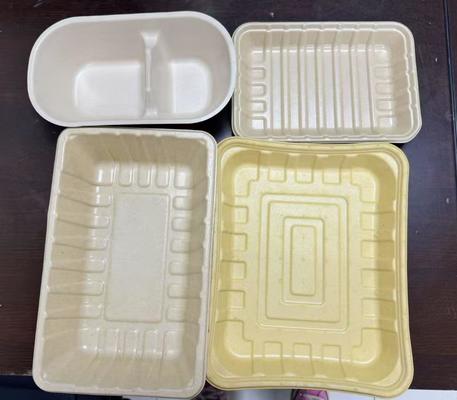

Waterproofing for industrial pulp packaging (edge protectors, corner pads, custom cushioning).
Customization:
Customizable spray head configuration, drying power, and automation level for specific industrial needs.
Feature:
-
Hardened steel construction for durability
-
High-viscosity coating capability
-
Easy maintenance access
-
Low VOC emission design
Support and Services:
On-site commissioning, spare parts kit, operational training, video support.
Packing and Shipping:
Weather-proof wooden crates, anti-rust treatment for all metal parts.
FAQ:
Q: What coating materials are supported?
A: The system is customizable for various water-based coatings per your requirements.
