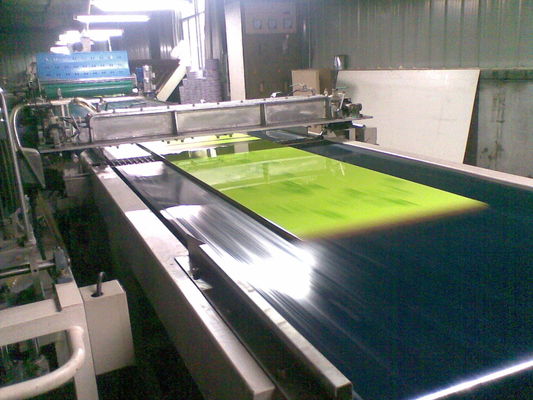

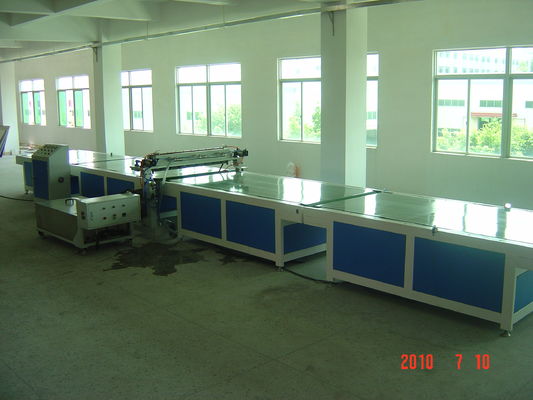

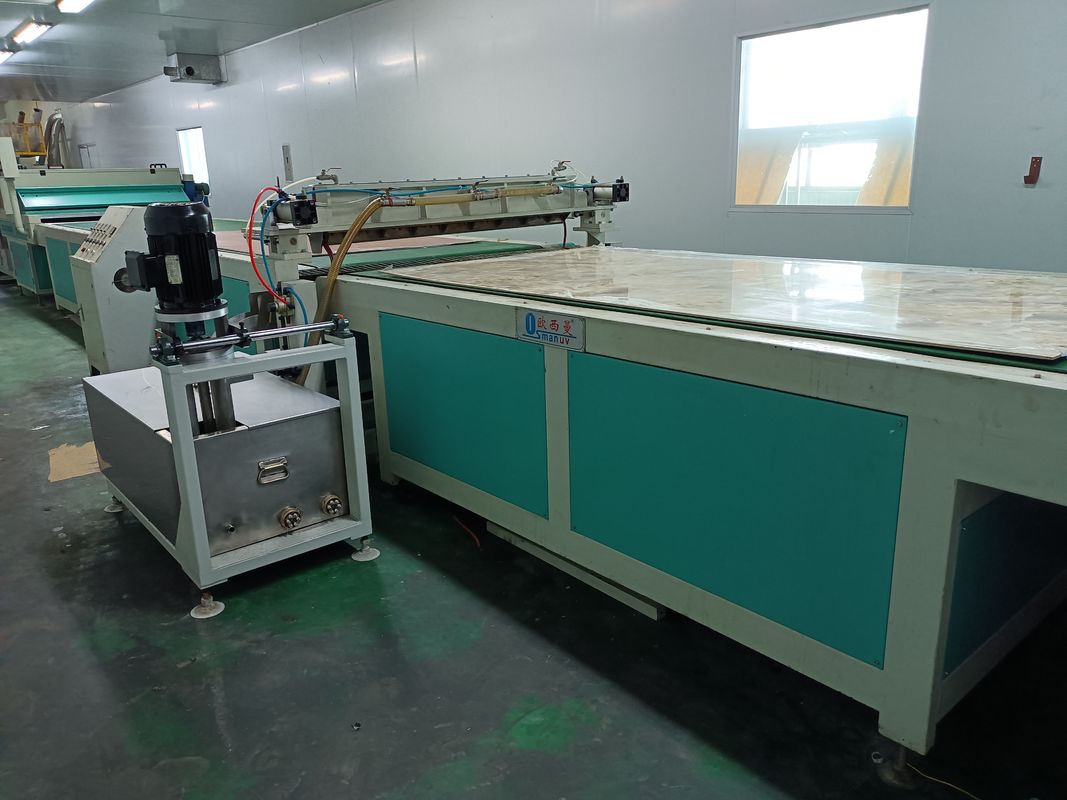

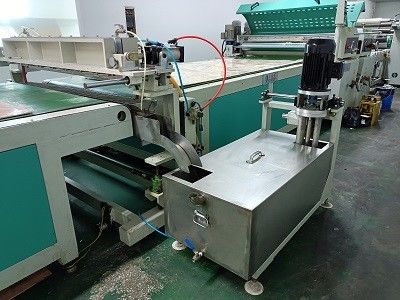

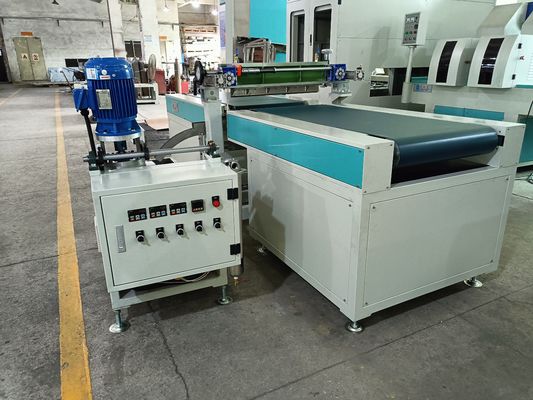

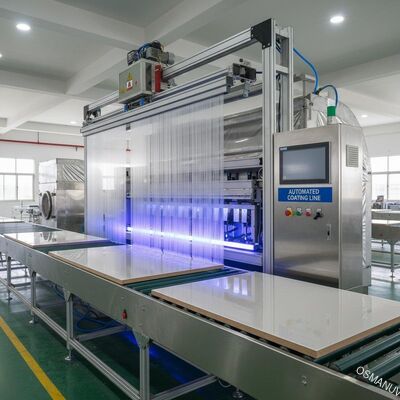

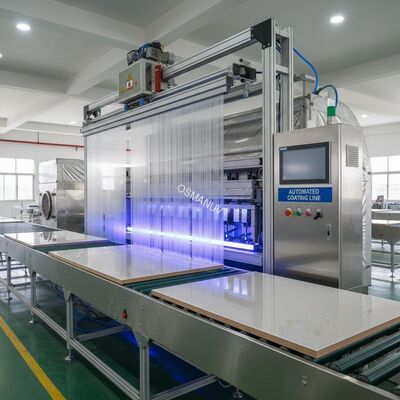

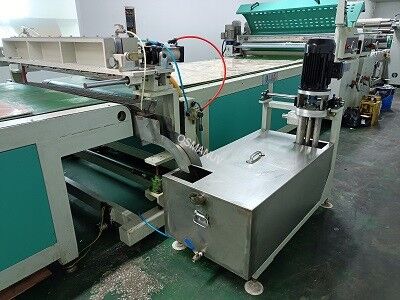

High-Gloss Panel Furniture Curtain Coating Machine: Automated UV Finish Coating Line for MDF Board
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | OSMANUUV |
| Sertifika: | ISO9001 |
| Model numarası: | OSM-LT-1320 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 set |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Ahşap ambalajı |
| Teslim süresi: | 45 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Müzakere |
|
Detay Bilgi |
|||
| Boyutlar: | 6000 mm (L) × 2200 mm (W) × 1400 mm (h) | Yerden kemer yüksekliği: | Ayarlanabilir, 850-900 mm |
|---|---|---|---|
| İşlenebilir kalınlık: | 3-80mm | Minimum işlenebilir uzunluk: | 300mm |
| konveyör gücü: | 2.2kw | Boya Tankı Kapasitesi: | 250kg |
Ürün Açıklaması
High-Gloss Panel Furniture Curtain Coating Machine: Automated UV Finish Coating Line for MDF Board
-

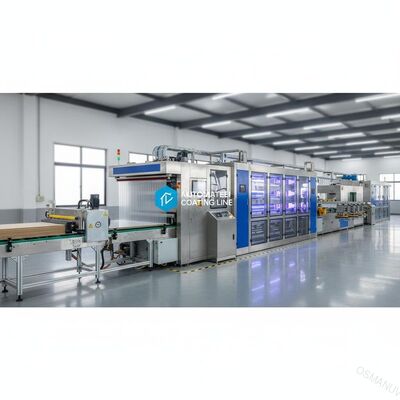

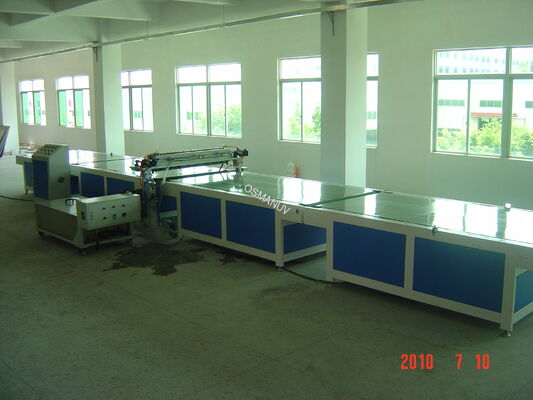

Composition of Production Line:
This integrated system comprises an automatic panel feeder, precision brush sander, high-efficiency dust removal unit, infrared pre-heating station, curtain coating applicator, UV curing oven, cooling section, and automatic stacker. -
Product Description:
This high-speed curtain coating line is engineered for furniture manufacturers seeking a flawless, high-gloss finish on flat panel components like cabinet doors, table tops, and shelving. It applies a perfect, uniform curtain of UV coating onto the substrate, resulting in a durable, mirror-like surface with exceptional clarity and scratch resistance. Ideal for high-volume production of modern, high-gloss furniture. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-LT-1320 |
| Suitable Substrate | MDF, Particle Board, Plywood, Pre-laminated Panels |
| Coating Method | Precision Curtain Coating |
| Max. Panel Width | 2800 mm (Customizable) |
| Max. Panel Thickness | 50 mm |
| Line Speed | 0-10 m/min |
| Coating Type | UV Coatings (Clear, Pigmented) |
| Curing Method | High-Power UV Curing Lamp |
Paint Consumption |
60～200 g/㎡ |
-
Application:
High-gloss cabinet doors, table tops, office furniture panels, and decorative wall panels. -
Customization:
The line can be customized with different coating head widths, specific UV lamp power for optimal curing, and integration with pre- and post-processing equipment. -
Feature:
-
Perfect High-Gloss Finish: Delivers a mirror-like, defect-free surface.
-
Extremely High Efficiency: Suitable for continuous, high-throughput production lines.
-
Minimal Coating Waste: Precise application reduces material consumption.
-
Instant Curing: UV curing allows for immediate handling and stacking.
-
-
Support and Services:
On-site installation supervision, comprehensive operator training on maintenance and operation, and readily available spare parts. -
Packing and Shipping:
All modules are crated in heavy-duty, weatherproof wooden cases. Sensitive components like the coating head are packed separately with special cushioning. -
FAQ:
Q: Why is curtain coating ideal for high-gloss finishes?
A: Curtain coating applies a continuous, uninterrupted film of coating that levels perfectly before curing, eliminating the orange peel effect or streaks common in spray methods, which is essential for achieving a perfect gloss.
