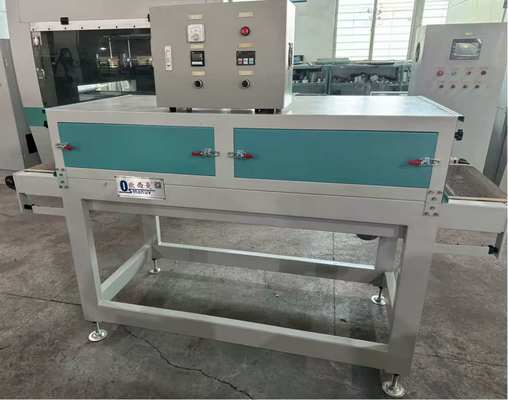

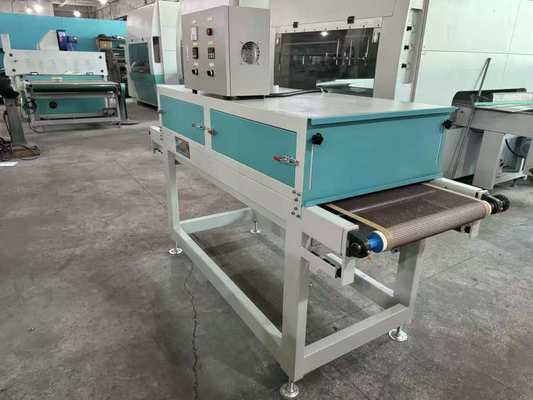

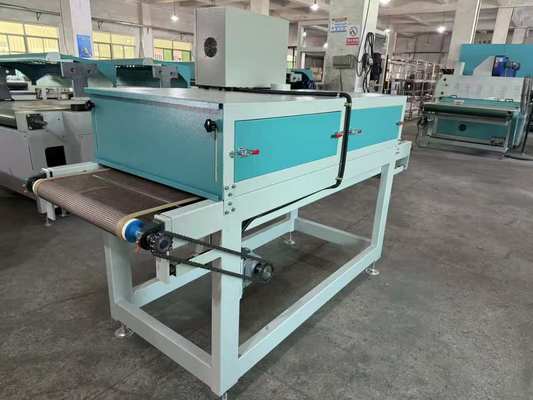

High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | OSMANUV |
| Sertifika: | CE |
| Model numarası: | OSM-IR-500 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 takım |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Ahşap ambalajı |
| Teslim süresi: | 30 Gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | müzakere |
|
Detay Bilgi |
|||
| Ürün adı: | Kızılötesi Kurutma Makinesi | Boyut(U*G*Y): | 2200mm U*1000mm G* 1280mm Yükseklik |
|---|---|---|---|
| Gerilim: | 380V 50Hz | Kurulum: | Mühendis Kılavuzu, Teknisyenin Rehberliği Altında, Mühendisin Rehberliği |
| Hammadde: | 304 Paslanmaz Çelik | Satış sonrası servis sağlandı: | Videolu teknik destek |
| Durum: | YENİ | Garanti: | 1 yıl |
| Vurgulamak: | bamboo fiber mold infrared drying machine,high precision infrared drying machine,infrared drying machine for enhanced strength |
||
Ürün Açıklaması
High Precision Bamboo Fiber Mold Drying Machine for Enhanced Strength and Stability
Product Description:
Our precision IR Drying Oven is specifically designed for bamboo fiber molded products, providing controlled and gentle heat to enhance structural integrity and dimensional stability. This machine ensures rapid moisture removal without compromising the natural fibers, resulting in stronger, high-quality finished goods. Key components are customizable to optimize performance for your specific bamboo pulp blend.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Model | OSM-IR-500 |
| 2 | Specification (LWH) | 2200mm * 1000mm * 1280mm |
| 3 | Effective Drying Width | 500mm |

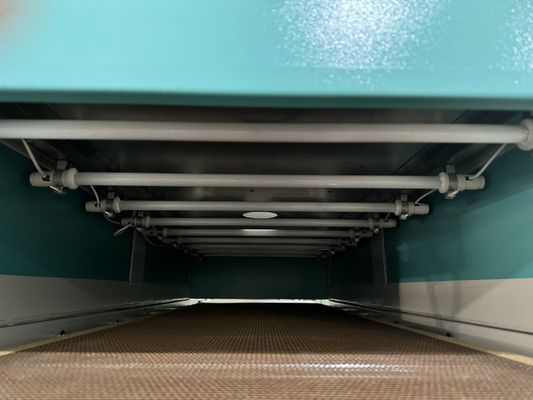

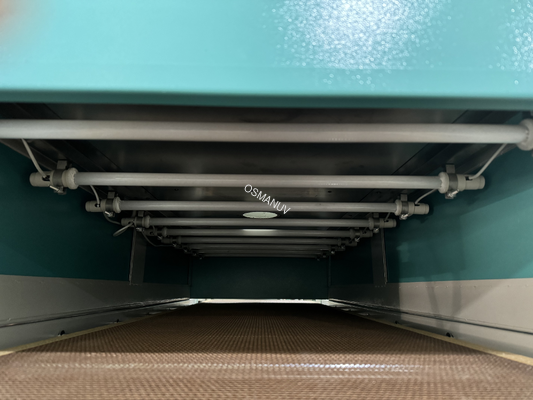

| 4 | Heating Element | 9 x 1KW Infrared Quartz Lamps |
| 5 | Conveyor Belt | American Kevlar Teflon Mesh Belt |
| 6 | Control System | Taiwan Delta Inverter (Speed: 0.1-3 m/min) |
| 7 | Temperature Control | OMRON Thermostat (RT - 100°C Adjustable) |
| 8 | Power | 9.5KW |
| 9 | Voltage | 380V, 50Hz |
| 10 | Lifespan | 10-15 Years (Depending on maintenance) |
Application:
Perfect for drying eco-friendly bamboo fiber tableware, packaging, and other molded products that require high precision and strength.
Customization:
The drying process is highly customizable, allowing for adjustments in temperature profiles and dwell time to suit various bamboo fiber densities and product thicknesses.
Feature:
-
Gentle IR heating preserves bamboo fiber integrity.
-
High-precision temperature control for consistent results.
-
Durable construction with corrosion-resistant interior.
-
User-friendly button control interface.
Support and Services:
-
Comprehensive one-year warranty.
-
Lifelong technical support and troubleshooting.
-
Prompt spare parts supply and detailed operational training.
Packing and Shipping:
Expertly crated and shipped via sea freight under DDP terms. Total delivery time is approximately 80 days from order confirmation.
FAQ:
-
Q: How does this machine benefit bamboo fiber products specifically?
A: The controlled IR heat prevents overheating and warping, which is crucial for maintaining the strength and smooth finish of bamboo products. -
Q: Can the conveyor speed be synchronized with our molding machine?
A: Yes, the variable speed drive is easily customizable to sync with your upstream and downstream equipment.
