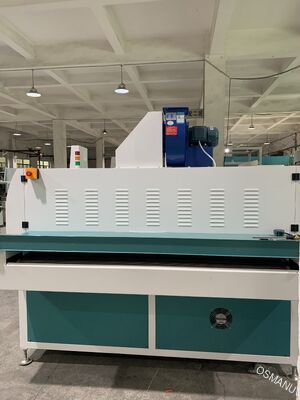

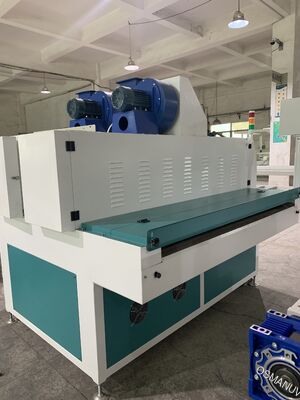

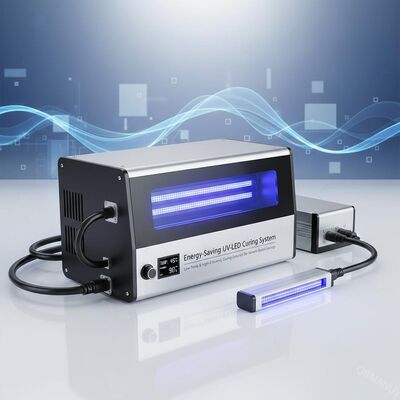

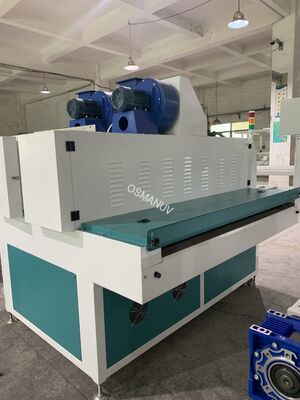

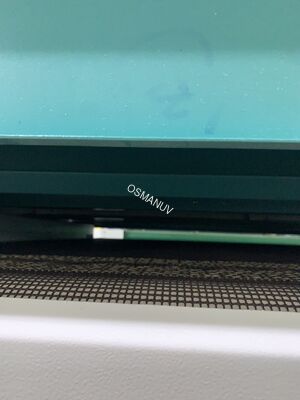

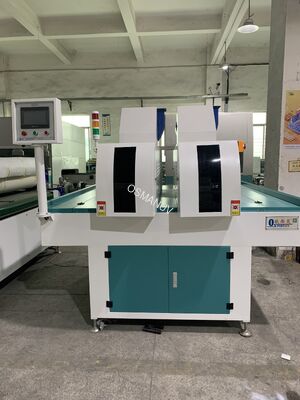

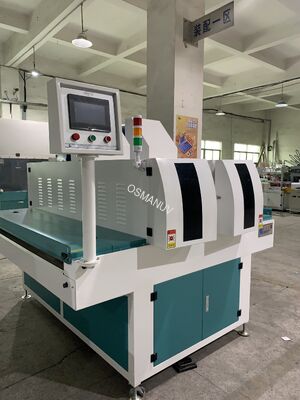

Energy-Saving UV-LED Curing System | Low-Temp & High-Efficiency Curing Solution for Solvent-Based Coatings
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | OSMANUV |
| Sertifika: | ISO9001 |
| Model numarası: | OSM-GH-1320 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 TAKIM |
|---|---|
| Fiyat: | Pazarlık edilebilir |
| Ambalaj bilgileri: | ahşap kutu |
| Teslim süresi: | 30~45 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Müzakere |
|
Detay Bilgi |
|||
| Kaplama hızı: | ayarlanabilir, 1-15 metre/dak | Kaplama Malzemesi: | UV Vernik |
|---|---|---|---|
| Tip: | Kürleme makinesi | Çekirdek bileşenler: | Motor, Motorlu |
| Başvuru: | Baskı, kaplama, yapışkan kürleme | İşlem: | Basit |
| Otomobil sınıfı: | Tam Otomatik | Işık kaynağı: | UV ışığı |
| Vurgulamak: | UV-LED curing system for coatings,low-temperature UV curing machine,energy-efficient UV curing solution |
||
Ürün Açıklaması
Energy-Saving UV-LED Curing System | Low-Temp & High-Efficiency Curing Solution for Solvent-Based Coatings
1. Composition of Production Line
A modern system with a UV-LED array module, an air-cooling system, a conveyor, a dedicated LED driver/power supply, and a smart control system with instant on/off.
2. Product Description
Provides an efficient, low-heat solution for curing solvent-based coatings. UV-LEDs emit minimal infrared, preventing heat damage to sensitive substrates while offering significant energy savings and immediate operation.
3. Technical Parameters
| Parameter Category | Specification |
|---|---|
| Model | UVLED-EC-1000 |
| Curing Width | 1000 mm [Customizable] |
| UV-LED Wavelength | 395 nm or 365 nm (other customizable) |
| UV-LED Irradiance | Up to 5000 mW/cm² |
| Heat Output | Very low (cold cure process) |
| Conveyor Speed | 1 - 15 m/min |
| Power Consumption | Up to 70% lower than conventional UV |
| Lifetime | LED: 20,000+ hours |
4. Application
Heat-sensitive applications: Plastic coatings, Prefinished wood, Electronic assemblies, Graphics.
5. Customization
Highly customizable: specific UV wavelengths, irradiance profiles, working distance, modular design for expansion.
6. Features & Advantages
-
Ultra-Low Heat: Prevents substrate warping.
-
Instant On/Off: No warm-up/cool-down.
-
Long Lifetime: Low maintenance, reduces TCO.
-
Eco-Friendly: Lower energy use, no mercury.
7. Support and Services
-
Application testing support.
-
Long-term warranty on LED modules.
-
Energy-saving audit.
8. Packing and Shipping
Compact, lightweight for simpler packing and lower shipping cost.
9. FAQ
-
Q: Are all solvent-based coatings curable with UV-LED?
-
A: Coatings must match the LED's wavelength. We offer customizable wavelength options and assist with selection.
-
-
Q: Main cost benefits?
-
A: Drastically lower energy bills, no lamp replacement, reduced cooling needs.
-
-
Q: Can it be retrofitted?
-
A: Yes, compact size allows straightforward retrofitting with custom mounting solutions.
-
