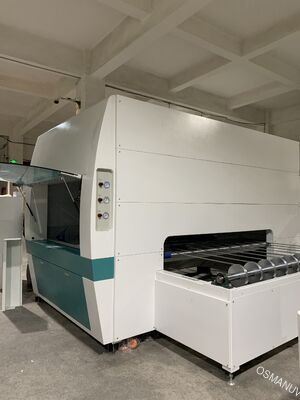

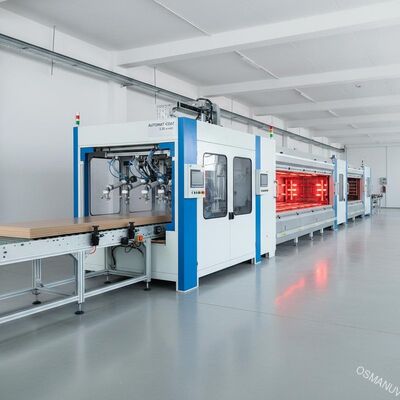

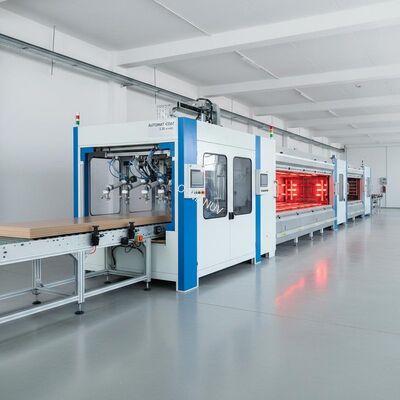

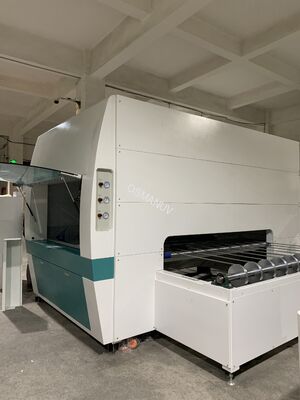

Composition of Production Line

Our Automated Spray Coating Production Line for furniture panels is a fully integrated, modular system designed for continuous, high-quality surface finishing. The standard production line composition includes:

1. Automatic Feeding Conveyor: Roller or belt conveyor for smooth panel infeed.

2. Dust Removal & Ionization Unit: Brush roller + air knife to clean panel surface and eliminate static for optimal coating adhesion.

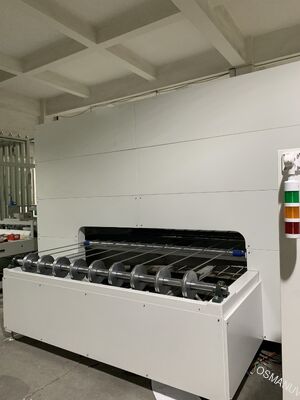

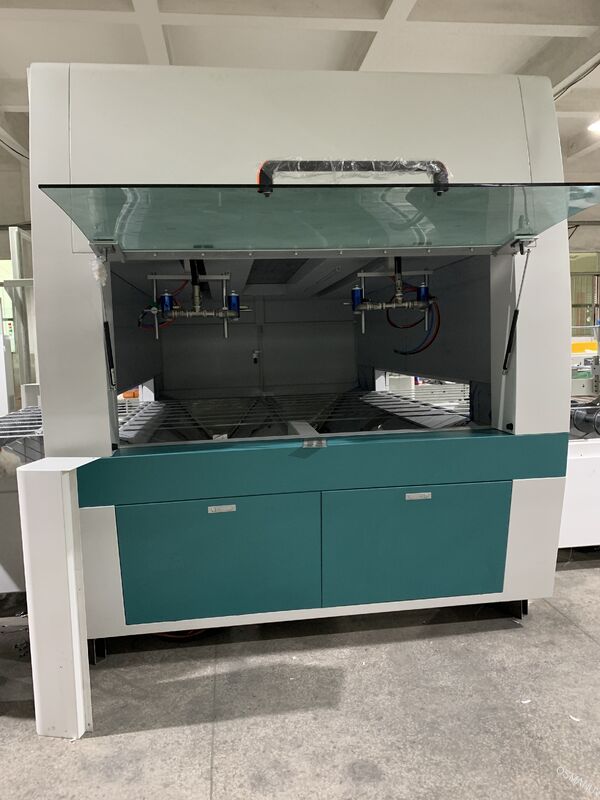

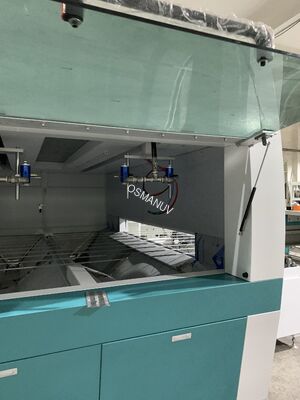

3. Precision Roller Coater / Spray Coating Chamber: Equipped with reciprocating spray guns (2-8 pcs) for uniform application of primers, topcoats, or UV coatings.

4. Paint Supply & Circulation System: Pneumatic diaphragm pumps with precision pressure regulators and stainless steel paint tanks (20-40L).

5. Leveling Tunnel: Allows coated panels to flow out for smoother surface before drying.

6. Drying/Curing Oven: Modular IR drying or UV curing tunnel with zoned temperature control (ambient to 120°C).

7. Air Cooling Section: Forced air cooling to reduce panel temperature after drying.

8. Automatic Unloading & Stacking Unit: Collects finished panels for packaging.

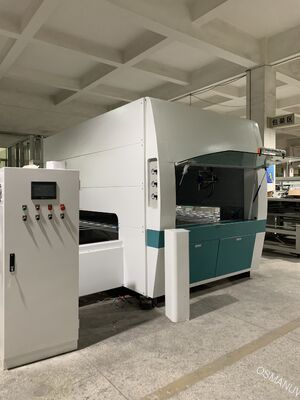

9. Centralized PLC Control Panel: Touch-screen HMI (Mitsubishi/Delta) controlling line speed, spray parameters, temperature, and recipe storage.

Note: The line configuration—including number of spray guns, oven length, and conveyor layout—is fully customizable to fit your specific production space and output requirements.

Product Description

Our Automated Spray Coating Production Line is a high-efficiency, continuous finishing system specifically engineered for applying uniform surface coatings to flat furniture panels such as MDF, particleboard, plywood, solid wood, and composite boards. It is ideal for primers, basecoats, topcoats, UV-curable paints, and water-based coatings.

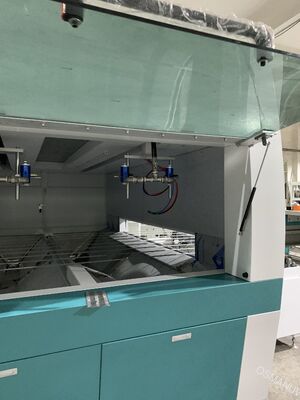

The system utilizes a reciprocating spray mechanism with multiple high-precision spray guns mounted on a servo-driven rail. The guns move back and forth across the panel surface while the panel travels on a variable-speed conveyor. This ensures complete coverage with adjustable overlap and minimal overspray. The paint supply system features pressure stabilization and optional circulation for consistent viscosity and flow.

After spraying, panels pass through a leveling tunnel for coating flow-out, then enter a modular drying/curing oven. IR lamps or hot air provide zoned heating (ambient to 120°C) to cure the coating rapidly. An air cooling section brings panels to handling temperature before automatic stacking.

Key advantages include:

• High production speed (up to 20 m/min)

• Uniform coating thickness (5-50 microns adjustable)

• Reduced paint waste (up to 30% savings vs. manual spraying)

• Consistent quality with PLC-controlled repeatability

The line is fully customizable to handle various panel sizes, coating types, and production capacities, from entry-level models to fully automated high-speed lines.

Technical Parameters

The following table outlines specifications for standard configurations. Extensive customization is available to meet your unique panel dimensions, coating materials, and throughput targets.

Application

This automated spray coating line is widely used in the furniture and wood products industry for:

• Panel Furniture: MDF, particleboard, plywood, solid wood panels for wardrobes, cabinets, desks, and shelves.

• Decorative Boards: Wall panels, ceiling panels, door skins, and wainscoting.

• Engineered Flooring: Priming and topcoating of wood plastic composite (WPC) or solid wood flooring.

• Kitchen Cabinets & Bathroom Vanities: Applying primers, basecoats, and UV topcoats for moisture resistance.

• Office Furniture: Desktops, partition panels, and storage units.

• Musical Instruments & Craft Items: Flat panels for guitars, speakers, and decorative crafts.

Customization

We understand that every furniture factory has unique panel sizes, coating requirements, and production layouts. Therefore, our automated spray coating lines are highly customizable:

1. Working Width: Customizable from 650mm to 2500mm to match your maximum panel width.

2. Spray Gun Configuration: Customizable number of guns (2-12), reciprocating stroke length, and gun angle for edge coating or 5-face coating.

3. Conveyor Type: Choice of stainless steel mesh belt, Teflon belt, or heavy-duty roller conveyor for different panel weights and coating types.

4. Drying/Curing System: Customizable selection of IR drying, UV curing, hot air convection, or hybrid combination based on your coating chemistry (water-based, solvent-based, UV).

5. Temperature Zones: Customizable number of heating zones and temperature profiles for multi-stage drying.

6. Paint Delivery System: Customizable from simple pressure tanks to fully circulating systems with automatic viscosity control and color change flushing.

7. Automation Level: From semi-automatic manual control to fully automatic PLC with remote monitoring, recipe management, and data logging.

8. Exhaust & Overspray Recovery: Customizable water curtain or dry filter systems to meet local environmental regulations.

9. Infeed/Outfeed Tables: Customizable lengths and heights to integrate with existing conveyors or stacking systems.

10. Material Construction: Standard powder-coated steel or customizable stainless steel (SUS 304) for wet areas or cleanroom environments.

Feature

• Reciprocating Spray Technology: Servo-driven rail with adjustable stroke, speed, and overlap ensures even coverage on panels of varying widths.

• High Transfer Efficiency: HVLP or precision automatic guns minimize overspray, saving 20-30% paint compared to manual spraying.

• PLC Precision Control: Store up to 100 recipes for different panel sizes and coating types; one-touch changeover reduces downtime.

• Automatic Paint Circulation: Optional circulation system maintains consistent viscosity and prevents pigment settling for high-quality finishes.

• Zoned Drying Control: Independent temperature control for each IR or UV zone ensures optimal curing without scorching or under-curing.

• Energy-Saving Design: Insulated oven panels and automatic idle mode reduce energy consumption during production pauses.

• Rapid Color Change: Optional flushing system for fast cleaning between color changes (5-10 minutes).

• Comprehensive Safety: Emergency stops, motor overload protection, over-temperature protection, and safety interlocks on access doors.

• Easy Maintenance: Modular design allows quick access to spray guns, pumps, and filters for cleaning and replacement.

• Dust-Free Environment: Enclosed spray chamber with exhaust fan and overspray collection maintains clean working conditions.

Support and Services

• Pre-Sales Consultation: We analyze your panel specifications, coating materials, and production targets to recommend the optimal customized line configuration.

• Sample Testing: Run your panels with your paints in our demonstration center to verify coating quality and production speed before purchase.

• Layout Design: Our engineers provide 2D/3D layout drawings for your factory floor, including electrical and air requirements.

• Installation & Commissioning: On-site setup, calibration, and integration with your existing production line by our experienced technicians.

• Comprehensive Training: Hands-on training for your operators and maintenance staff on machine operation, recipe programming, cleaning, and preventive maintenance.

• Warranty: 12 months for the whole machine (mechanical parts), 6 months for electrical components. Extended warranty options available.

• Remote Support: 24/7 online technical support via phone, email, WhatsApp, or video call.

• Spare Parts: Guaranteed availability of genuine spare parts with fast shipping (2-7 days via air courier).

Packing and Shipping

• Packing: Main modules are wrapped in stretch film and shock-absorbing foam, then packed in custom-sized reinforced export wooden crates. All crates are waterproof and fumigation-free (ISPM-15 compliant).

• Accessories: Small parts (spray guns, pumps, electrical panels) are packed in sealed plastic bags and foam-lined cartons.

• Shipping:

  • Port of Loading: Shenzhen / Guangzhou / Shanghai, China (as per client request).

  • Lead Time: Standard lines: 20-30 working days; Customized lines: 30-45 working days after order confirmation and technical approval.

  • Shipping Method: Available by sea (FCL/LCL), air freight, or express courier for spare parts.

  • Shipping Terms: FOB, CIF, CNF, DDP – customizable based on your location and preference.

• Documentation: Commercial invoice, packing list, bill of lading, user manual, and CE certificate (if applicable) provided.
