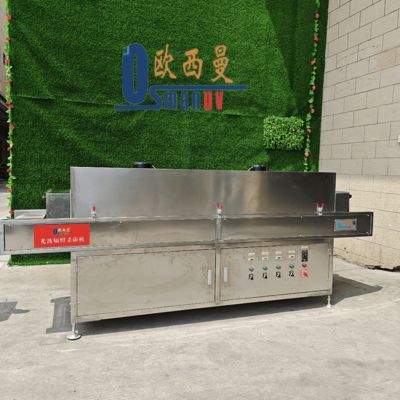

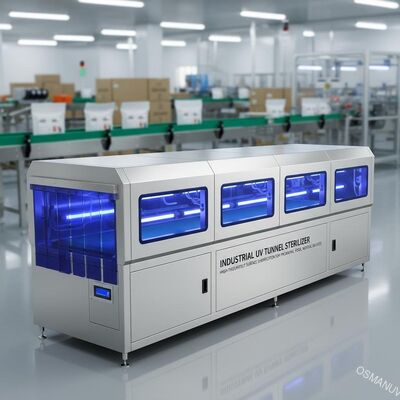

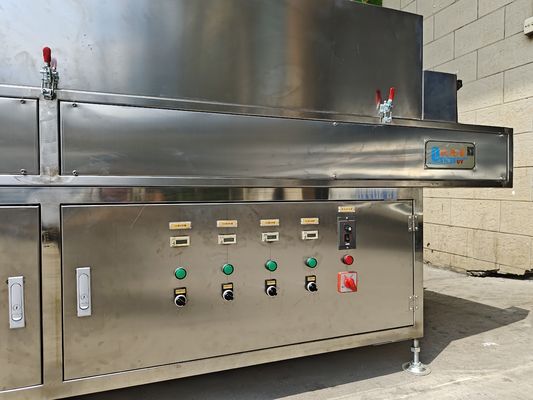

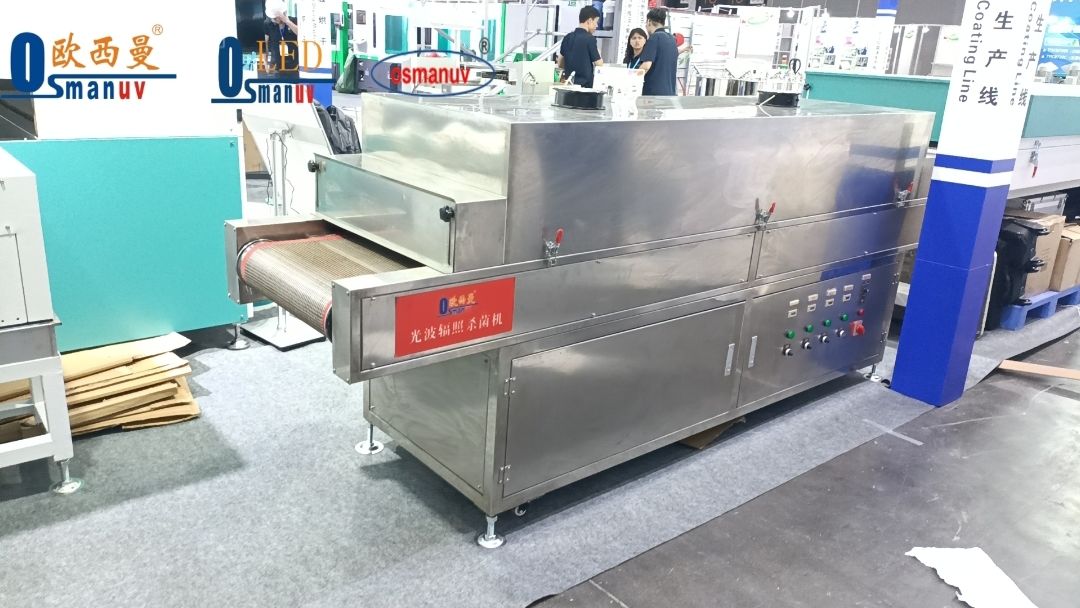

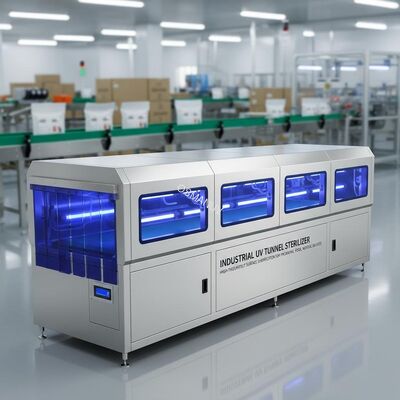

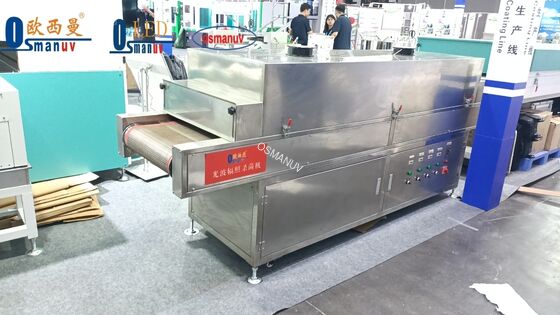

Industrial UV Tunnel Sterilizer for Conveyor Lines – High-Throughput Surface Disinfection for Packaging, Food, Medical Devices
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | OSMANUV |
| Sertifika: | ISO9001 |
| Model numarası: | Şartname |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 Takım |
|---|---|
| Fiyat: | Pazarlık edilebilir |
| Ambalaj bilgileri: | Ahşap ambalajı |
| Teslim süresi: | 8.000 saat |
| Ödeme koşulları: | T/T |
| Yetenek temini: | müzakere |
|
Detay Bilgi |
|||
| Malzeme: | paslanmaz çelik 304 | Malzemeler: | 304 Paslanmaz Çelik |
|---|---|---|---|
| Gerilim: | 220V, 380V, 380V/220V, 220V/380V, 380V/50Hz | Kağıt Kalınlığı: | 80~600g/m2 |
| Güç: | 85kW | Çeşitlilik: | yüksek verimli taşlama makinesi |
| Otomatik Sınıflandırma: | Tam Otomatik | klor: | karbon püskürtme boyası |
Ürün Açıklaması
Industrial UV Tunnel Sterilizer for Conveyor Lines – High-Throughput Surface Disinfection for Packaging, Food, Medical Devices
This UV sterilizer uses high-intensity 254nm UV-C lamps to destroy 99.99% of bacteria, viruses, and mold on surfaces of non-porous objects. The product can be fully customized (lamp quantity, belt speed, chamber length, outer dimensions, control logic) to meet specific production or usage scenarios. Ideal for medical, food, cosmetic packaging, and household applications.
Technical Parameters
| Parameter | Standard Value | Customizable Range |
|---|---|---|
| UV-C wavelength | 254 nm | 254 nm / 185 nm (ozone) |
| Lamp power | 15W - 150W per lamp (depends on model) | 2 - 24 lamps, customizable layout |
| Irradiation time | 5 - 60 seconds (adjustable) | 1 - 300 sec via timer or speed control |
| Effective sterilization rate | ≥99.99% (S. aureus, E. coli) | Tested per customer object |
| Conveyor speed (industrial) | 0 - 10 m/min (variable) | Customizable up to 20 m/min |
| Chamber material | 304 stainless steel | 316L / powder-coated steel |
| Door type | Manual / automatic sliding | Customizable (hinged, roll-up, curtain) |
| Safety features | Door interlock, UV leakage sensor, emergency stop | Add cooling, lamp break detection |
| Power supply | 110V/220V, 50/60Hz | Customizable voltage & plug |
Applications
- Household: Phones, keys, baby bottles, toys, glasses, masks
- Medical: Stethoscopes, scissors, trays, PPE
- Food industry: Packaged food surface sterilization, cutting boards
- Laboratory & Salon: Tools, combs, nail files, lab coats
- Industrial: Bottles, caps, vials on conveyor lines - customizable mounting brackets available
Customization
All models support full customization:
- Size & shape (box, tunnel, cabinet)
- Lamp type (mercury UV-C, ozone-free, or UV LED)
- Control system (manual timer, PLC, remote IoT)
- Exterior color, logo, and labeling (OEM)
- Additional functions: digital lock, casters, auto-start on door close
Features
- Instant start - no warm-up time for LED version
- Quiet operation (<50 dB for home units)
- Reflective inner surface for 360° irradiation
- Auto shut-off when door is opened (safety interlock)
- Digital display of remaining time / lamp life
- Eco mode - low energy consumption
Support and Services
- 12-24 months warranty (depending on model)
- Free technical support via email/WhatsApp
- Spare parts supply for 5+ years
- Remote troubleshooting or on-site training (for industrial orders)
- Customization engineering support included
Packing and Shipping
- Packing: Plywood case with foam padding + anti-static bag + humidity absorber
- Standard export carton for small home models
- Shipping: By sea (FOB, CIF), air, or express (DHL/FedEx)
- Delivery: 7-30 days based on customization level
Frequently Asked Questions
Q: Can the UV sterilizer be customized for odd-shaped objects?
A: Yes. We can adjust lamp arrangement and chamber height - all models are customizable.
Q: Does it kill viruses including COVID-19?
A: Yes. 254nm UV-C is proven to inactivate SARS-CoV-2 and other pathogens.
Q: Is there any ozone produced?
A: Standard version is ozone-free. We can add ozone lamps (185nm) if requested - customizable.
Bu ürün hakkında daha fazla bilgi edinmek istiyorum
