Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | OSMANUV |
| Sertifika: | ISO9001 |
| Model numarası: | Şartname |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 Takım |
|---|---|
| Fiyat: | Pazarlık edilebilir |
| Ambalaj bilgileri: | Ahşap ambalajı |
| Teslim süresi: | 8.000 saat |
| Ödeme koşulları: | T/T |
| Yetenek temini: | müzakere |
|
Detay Bilgi |
|||
| Kuruma Süresi: | 0,2-1,2 saat (Ayarlanabilir) | Buharlaşma Kapasitesi: | 60-80 kg/saat |
|---|---|---|---|
| Kapasite: | 0,8-1kg/kw.saat | Kuru Yöntem: | Doğal Gaz |
| WDS'yi destekler: | ayarlanabilir, 0,3-10 metre/dak | Gürültü seviyesi: | ≤75 dB |
| Çelik malzeme: | Sus 304 | Buhar tüketimi: | 225-600 kg/saat |
Ürün Açıklaması
Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing

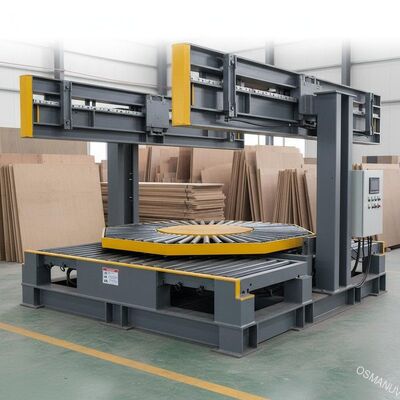

This folding turnover machine (also known as a plate flipper or sheet reverser) is designed to safely rotate panels, boards, metal sheets, or glass plates by 180° for double-side processing, inspection, or stacking. The folding arm structure minimizes space usage while maximizing throughput. The machine is fully customizable in terms of arm width, conveyor speed, turnover angle, and automation level to fit existing production lines.
Technical Parameters
| Parameter | Standard Value | Customizable Range |
|---|---|---|
| Max. sheet/panel size | 2500 × 1300 mm | Customizable up to 4000 × 2000 mm |
| Min. sheet thickness | 3 mm | Customizable down to 1.5 mm |
| Max. load capacity | 200 kg | Up to 800 kg customizable |
| Turnover angle | 180° | 90°, 180°, or customizable angle |
| Turnover speed | 12 - 20 cycles/min | 5 - 30 cycles/min customizable |
| Conveyor roller spacing | 150 mm | Customizable (80 - 250 mm) |
| Control system | PLC + 7″ HMI | Delta / customizable brand |
| Power supply | 380V / 50Hz (3-phase) | 220V - 480V, 50/60Hz customizable |
| Air pressure requirement | 0.6 MPa | Customizable (0.4 - 0.8 MPa) |
Applications
- Woodworking industry: Plywood, MDF, OSB, particle board double-side laminating or sanding
- Metal processing: Steel plate, aluminum sheet flipping for painting or inspection
- Glass manufacturing: Glass plate turnover between washing and coating
- Plastic sheet & composite panel production
- Customizable for: battery plates, stone slabs, rubber sheets
Customization Options
All models support full customization:
- Folding arm material (carbon steel painted / 304 stainless steel / aluminum)
- Conveyor type (roller, belt, chain-driven)
- Safety guard style and material
- Integration with existing line (infeed/outfeed height customizable)
- Special surface coating (anti-scratch, anti-static)
- Remote control or IoT data logging
Key Features
- Folding arm design - saves floor space vs. traditional rotary flipper
- No-scratch turnover - soft contact surface optional
- Bi-directional flipping (left or right discharge)
- Automatic speed matching with upstream/downstream equipment
- Emergency stop & overload protection standard
- Touch screen control with fault diagnosis
Support and Services
- 18-month standard warranty (extendable)
- Remote video support via WhatsApp / Teams
- Spare parts stocked for 7+ years
- On-site commissioning and training (for orders ≥ 1 unit)
- Customization engineering support included
Packing and Shipping
- Packing: Reinforced plywood crate with anti-rust treatment
- Conveyor sections wrapped in stretch film + moisture barrier
- Shipping: FOB (Shanghai / Shenzhen) or CIF by sea / air / rail
- Lead time: 15 - 40 days based on customization level
Frequently Asked Questions
Q: Can this folding turnover machine handle warped or uneven boards?
A: Yes. We can customize pneumatic arm pressure and roller spacing to stabilize curved boards.
Q: Is the machine safe for fragile sheets like glass or coated panels?
A: Yes. Optional soft rubber or felt contact surfaces are customizable to prevent scratching.
Q: Can it work without compressed air?
A: Yes. Fully electric (servo-driven) version is available - customizable upon request.
